MCoreKit-C5-ZR Zoom Rooms Base-kit for Diverse Rooms

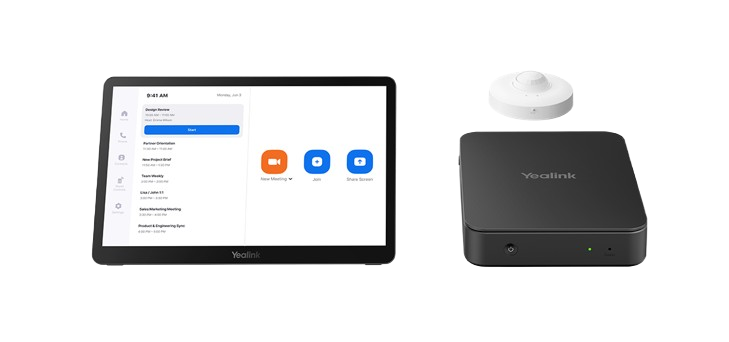

The Yealink Zoom Room Video Conferencing Base Kit MCoreKit-C5-ZR is designed for diverse meeting rooms, the Yealink MCoreKit-C5-ZR Zoom Room system is a bundle video conferencing system MCore Pro mini-PC, MTouch Plus touch panel, and RoomSensor.

Add to quote

Yealink

Category: Video Collaboration

Description

MTouch Plus Touch Console
11.6-inch narrow bezel IPS display
1920 x 1080 video resolution
Angle between screen and desktop (30°~70°)
Support wired and wireless (with WPP30) content sharing
Support HDMI/USB-C video input
Support desktop placement, desktop fixed, wall-mounted deployment
MCore Pro Mini-PC
11th Gen Intel® Core i5
Memory:8GB(2*4GB)
Storage:128GBSSD
Built-in EDID adapter
3x HDMI video output with CEC supported
Bluetooth and Wi-Fi
1 x Yealink MTouch port (RJ45), connect to MTouchPlus
4xUSB3.0
RoomSensor
Detection:
Occupancy
Temperature
Humidity
Light
Protocol: Bluetooth BLE 5.2
Frequency band: 2.4 GHz
Reach: 30 m (100 ft)
Multi-connectivity: Maximum 4 simultaneously, BLE mesh
